Products
- Hign-concerned Chemical: None
- Model Number: MCB-150
- Brand Name: ZXZH
- Origin: Mainland China
- Smart home platform: none
- beam detector measurement: 158 mm x 113 mm x46 mm
- Origin: Mainland China

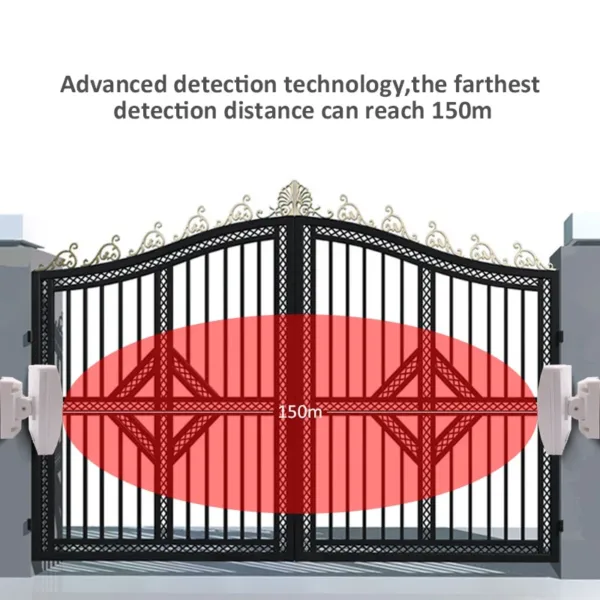

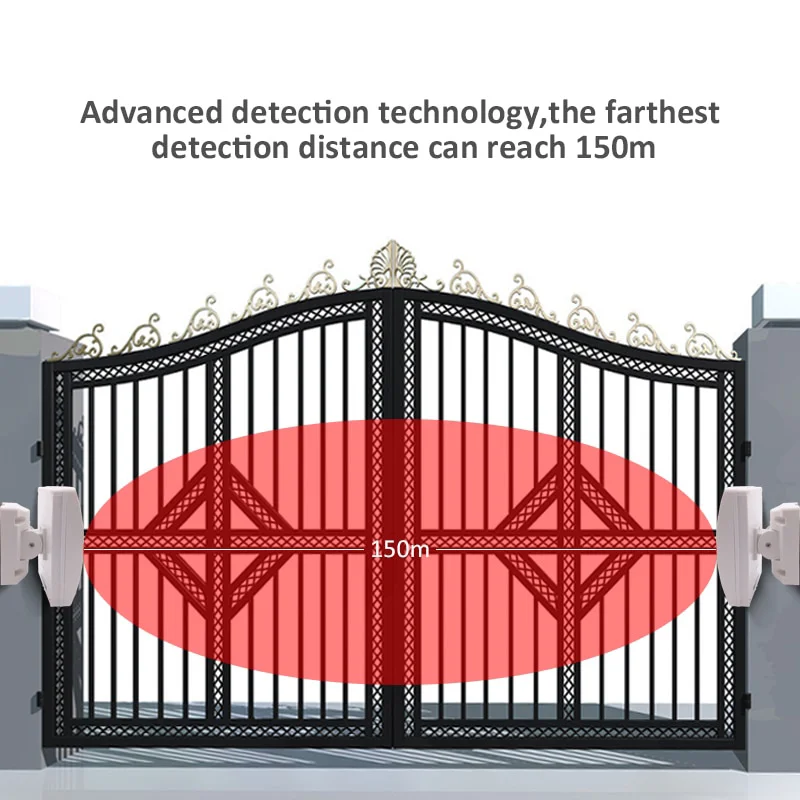

- Distance: 150m
- Usage: Fence guard
- Frequency: 8 adjustable working frequency
Outdoor Infrared Barrier Perimeter Alarm Wired Microwave Beam Detector Intrusion Monitor for Smart Life Security Protection
Perimeter Microwave Detection System
Microwave detection systems are an effective means of intruder detection where an outdoor site either has no perimeter fencing or has an open space beyond/within the perimeter. A good example of this would be a storage depot with items stored out in the open accessible via an open space within the perimeter boundary.
This photograph exemplifies the point. Here our microwave detection sensors have been installed to protect the valuable wooden, whisky barrels.
Features:
Highly immune to all kinds of potential false triggers – such as small animals, bushes or other obstructions – any human straying into the detection field will trigger the system
Multi-level sensitivity adjustment
Quickly and easily installed – fence, pole or wall
Robust and attractive enclosure provides maximum IP54 rating against all weather conditions
Articulating ball-&-socket mounting bracket allows no fuss installation in moments.
Specifications:
microwave frequency | 10.525GHz |
modulation frequency | 1.0KHz |
maximum transmitting power | 35mW(continues) 50mW(peak) |
scope(length of protection zone) | Max.200m |
lobe width | approx.5m |
lobe height | approx.2.5m |
rated power supply voltage | 12-24V |
range of power supply voltage | 10.2-24V |
current consumption | 70mA at 24V DC |
relay contacts values | NC 2V DC, maximum current 0.1A |
alarm period | 3 sec ( max.) |
tamper switch | NC 28 V DC maximum current 0.1A open when cover is removed |
detection speed(target velocity) | 0.2-10m/sec |
remote testing | built in self test generator simulates acutal intrusion signals |
flatness of ground | approx.0.3m |
maximum height of grass on the ground | 0.3m |
maximum height of snow on the ground | 0.5m |
alarm output-switching over of relay contacts for the time | minimum 3 sec |

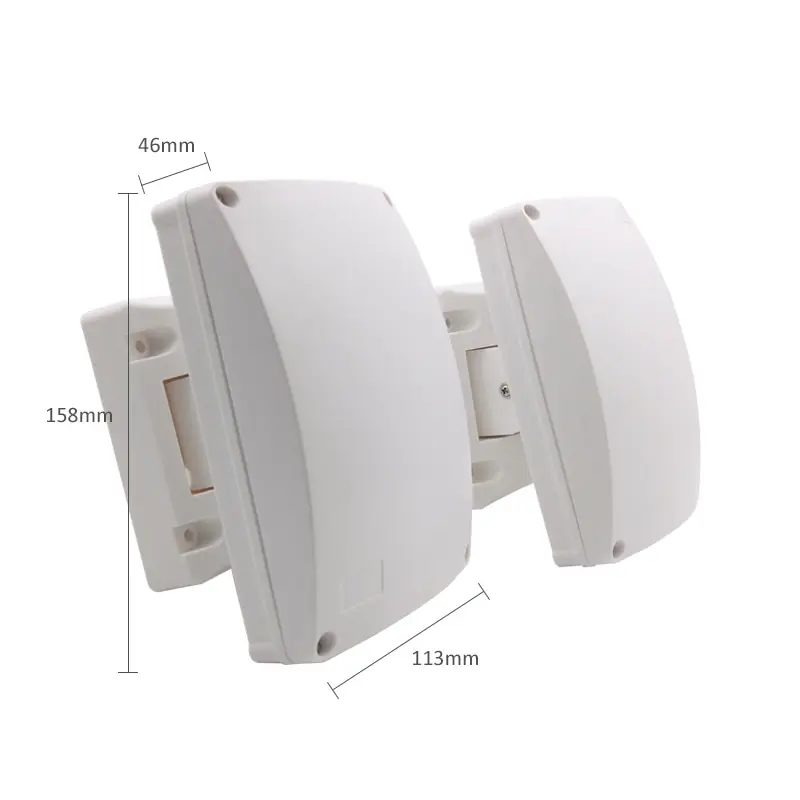

dimension of unit(trans./rec.)w/o bracket | 158*113*46mm |
weight(T,R and accessoires) | 1.1kg |
operating temperature range | -40oC-65oC |
ralative humidity | up to 98% |
weatherproofing | all openings with gasket and sealed conformal coated circuit board aganist snow and rain up to 30mm/hour. |
Cross Installation:
In order to avoid dead zones under aerials, and to increase the protected area. it is possible to install multiple MCB-150 systems connected together with overlapping. overlap configurations are performed with the units located at the angles of protected area. the minimum overlap for sufficient coverage must be at least 1.5-2M. the optional way is to install transmitters (T) only or receivers ( R) at the point of overlap.
Cross Installations:
In order to avoid dead zones under aerials, and to increase the protected area. it is possible to install multiple MCB-150 systems connected together with overlapping. overlap configurations are performed with the units located at the angles of protected area. the minimum overlap for sufficient coverage must be at least 1.5-2M. the optional way is to install transmitters (T) only or receivers ( R) at the point of overlap.

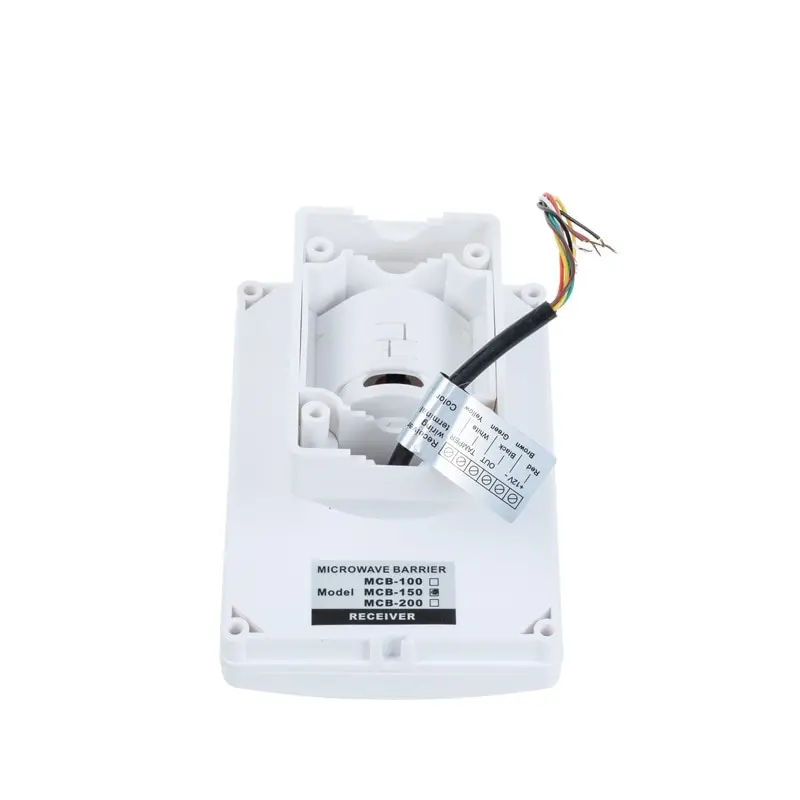

Wiring:

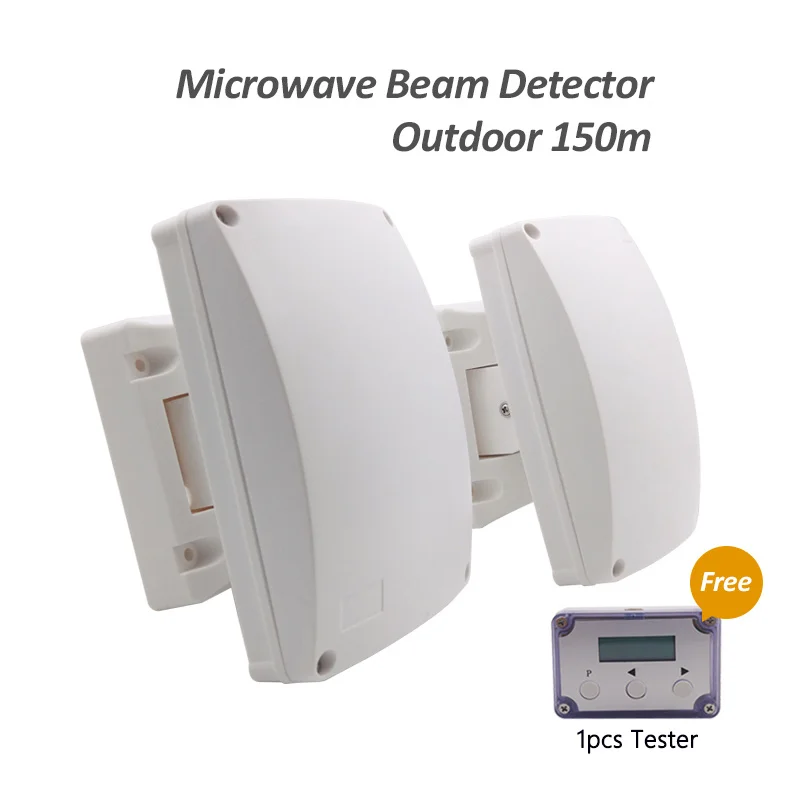

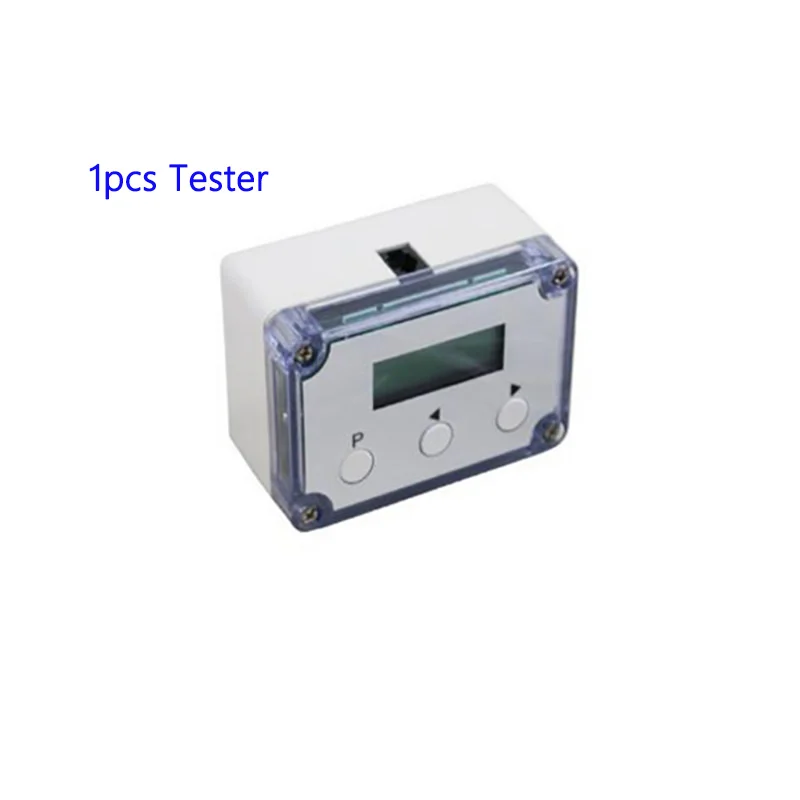

1 set Microwave Beam Sensor Detector and 1pc LCD Microwave Tester ( screws and bracket included).

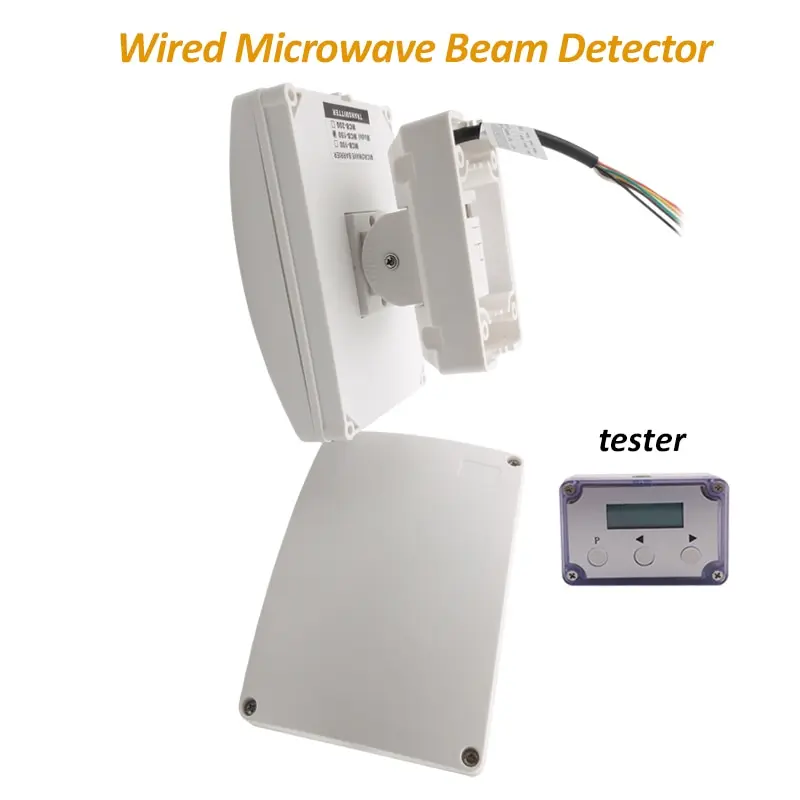

Note: This is wired microwave beam detector, it can connect to any alarm systems which support wired zones.
