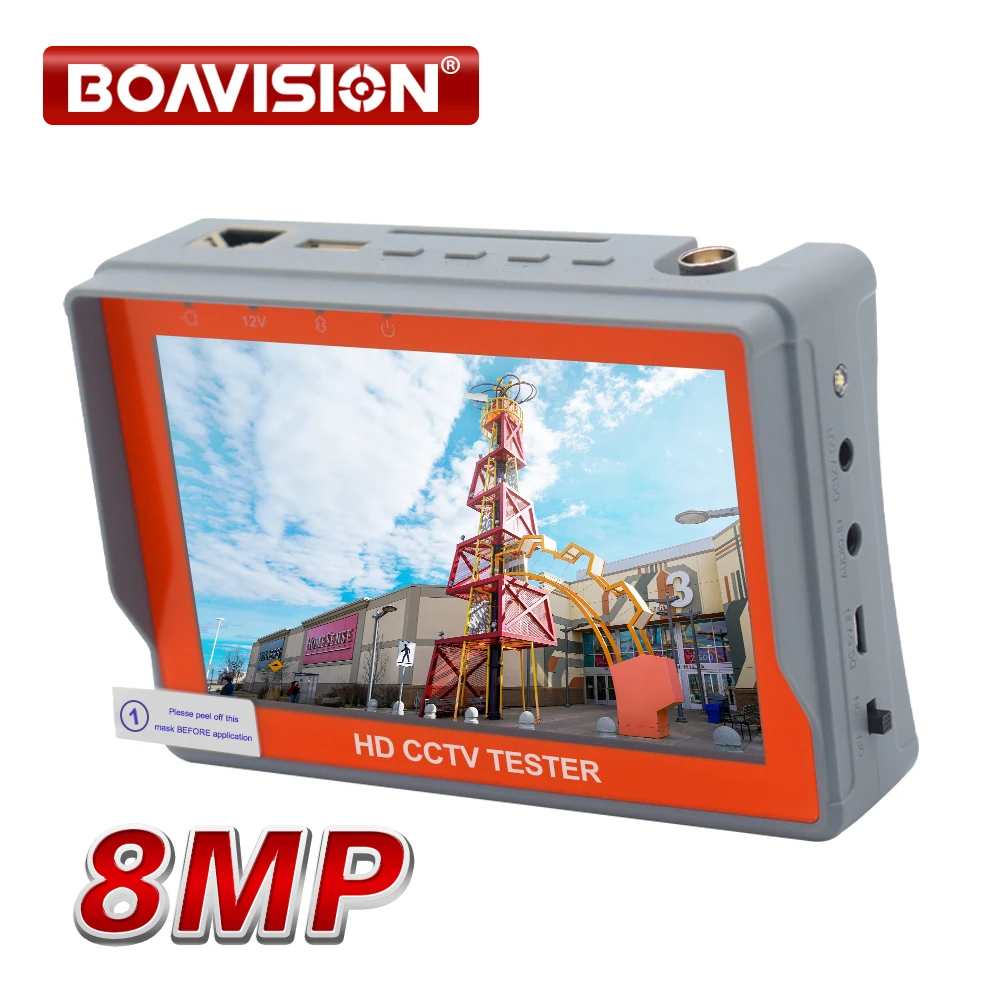

IV5 8MP 4 in 1 AHD/CVI/TVI CVBS Security Camera Monitor Tester Audio RS485 PTZ controller UTP UTC Portable Coaxial Camera Tester

Name: IV5 8MP 4 in 1 AHD/CVI/TVI CVBS Security Camera Monitor Tester Audio RS485 PTZ controller UTP UTC Portable Coaxial Camera Tester
SKU: 1005004727260292
Availability: InStock

117,00 €

Add to wishlist

Add to compare

SKU: 1005004727260292

Categories: Security Accessories, Testers

Description
Reviews (0)

Plug Type: EU
Model Number: MATC-IV5
Item Type: CCTV Tester
Brand Name: BOAVISION
Origin: Mainland China
LCD Screen:: 5.0 inch TFT-LCD, (RGB) 800x 480 resolution
Sensor Size:: 8MP AHD+TVI+CVI/CVBS CCTV Camera Tester
PTZ Control:: Support RS485
Battery:: Built-in 18650 2600mA battery

4 IN 1 CHIP

The 4 IN 1 Tester support max up to 8MP TVI CVI AHD Analog CVBS camera testing

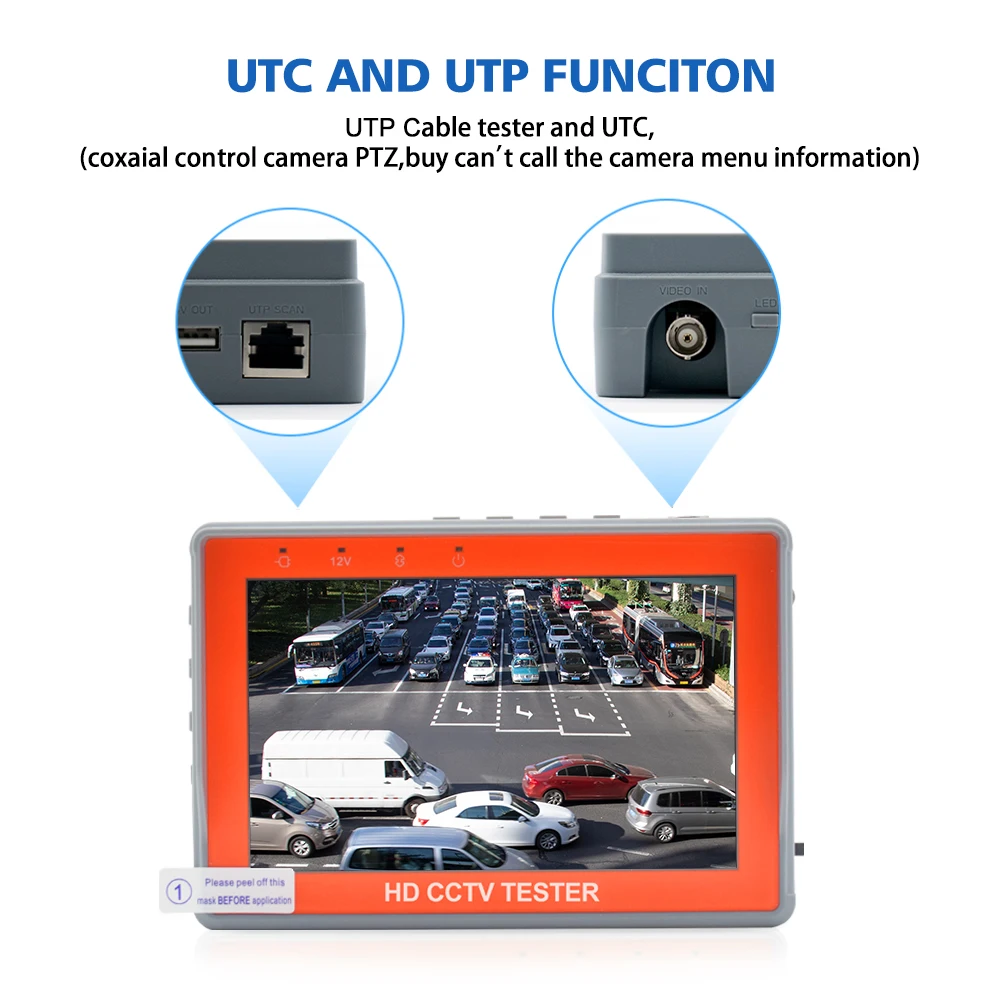

UTC and UTP Function

UTP Network cable testing Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.

UTC (HD coaxial control,BNC coaxial control PTZ,But can’t call the camera menu information )

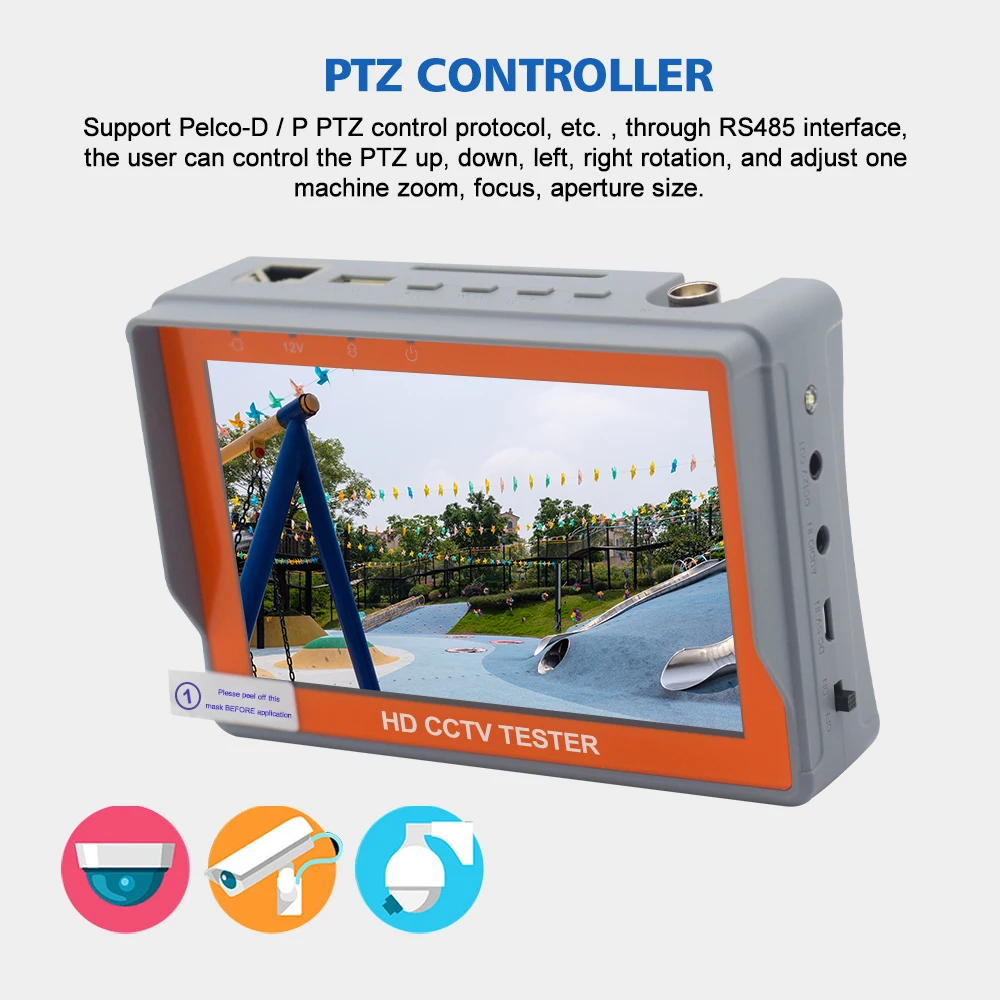

PTZ CONTROLLER

Support Pelco-D/P PTZ control protocol,etc , through RS485 interface, the user can control the ptz up,down,left ,right rotation,and adjust one machine zoom,focus,aperture size

LED LAMP

It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button,easy to operate.

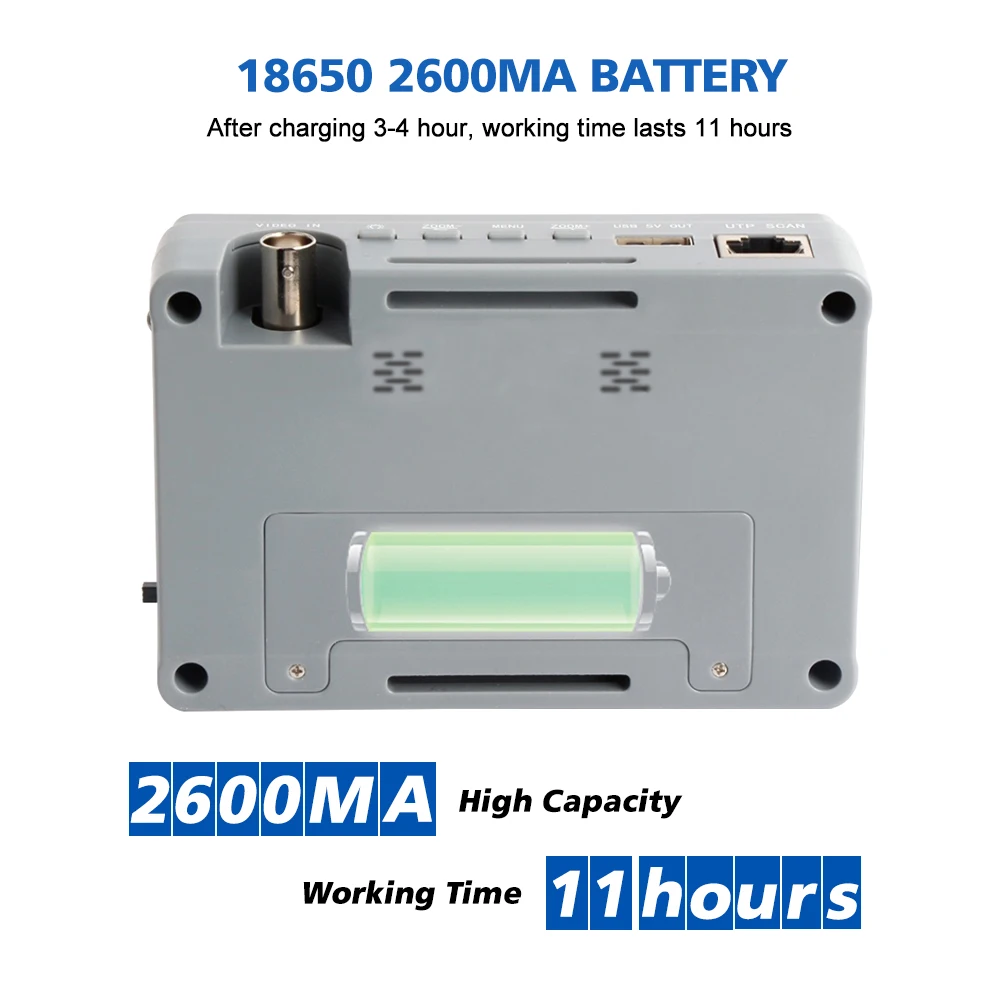

18650 2600MA BATTERY

After charging 3-4 hour, working time lasts 11 hours

Interface pictures

Wrist design

Easy to carry and operation

5 Inch LCD HD DISPLAY

Build in High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display

Product Dimension

Packing List

Main Features:

● 5-inch LCD 480 * 800 resolution

● Support PAL/NTSC standard video signal. CVBS testing.

● PTZ controller Support Pelco-D / P PTZ control protocol, etc. , through RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, focus, aperture size.

● Audio testing Test the audio input from pickup devices. Connect the tester and pickup device with the audio cable.

● UTP Network cable testing Display UTP cable connection status , cable type and the sequence of wires as well as read the number of the test box.

● TVI camera test HD TVI video surveillance testing, When TVI signal input, the tester will display HD TVI camera image.

● CVI camera test HD CVI video surveillance testing, When CVI signal input, the tester will display HD CVI camera image.

● AHD camera test HD video surveillance testing. When AHD signal input, the tester will display the AHD camera image.

● LED lamp It is useful for the engineer to install and maintain security system at night. LED On/Off pressing button, easy to operate.

● UTC (HD coaxial control,BNC coaxial control PTZ,But can’t call the camera menu information )

Model	IV5
LCD screen	5.0 inch TFT-LCD, 800(RGB)x 480 resolution
Video test	NTSC/PAL (Auto adapt)
LCD adjustment	Brightness, Contrast, Saturation adjustable
Video IN/OUT	1 channel BNC Input
PTZ Controller	Support RS485
PTZ Protocol	Compatible with protocols PELCO-D/P,
Baud Rate	Baud Rate: 1200, 2400, 4800, 9600, 14400bps
Color bar generator	Support both PAL / NTSC format’s standard color bar output
Color bar generator	(Red, Green, Blue, White, Black, Grey) and testing image output
UTP Cable Test	Display UTP cable connection status , cable type and
UTP Cable Test	the sequence of wires as well as read the number of the test box.
DC12V power output	Output DC12V1A power for camera
Audio input test	1 channel audio signal input
Coaxial HD test
TVI test	1 channel TVI input(BNC interface),
TVI test	support 720p/1080p/3MP/4MP/5MP/8MP, 25 / 30fps
CVI Test	1 channel TVI input(BNC interface),
CVI Test	support 720p/1080p/3MP/4MP/5MP/8MP, 25 / 30fps
AHD Test	1 channel AHD input (BNC interface),
AHD Test	support 720p/1080p/3MP/4MP/5MP, 25 / 30fps
POWER
Power Adapter	DC 5V(1.5A)
Battery	Built-in 18650 2600mA battery X 1,
Battery	After charging 3-4 hour, working time lasts 11 hours
General
Language	English and Chinese optional
Working Humidity	30%-90%
Dimension	194mm x 112mm x8mm / 540

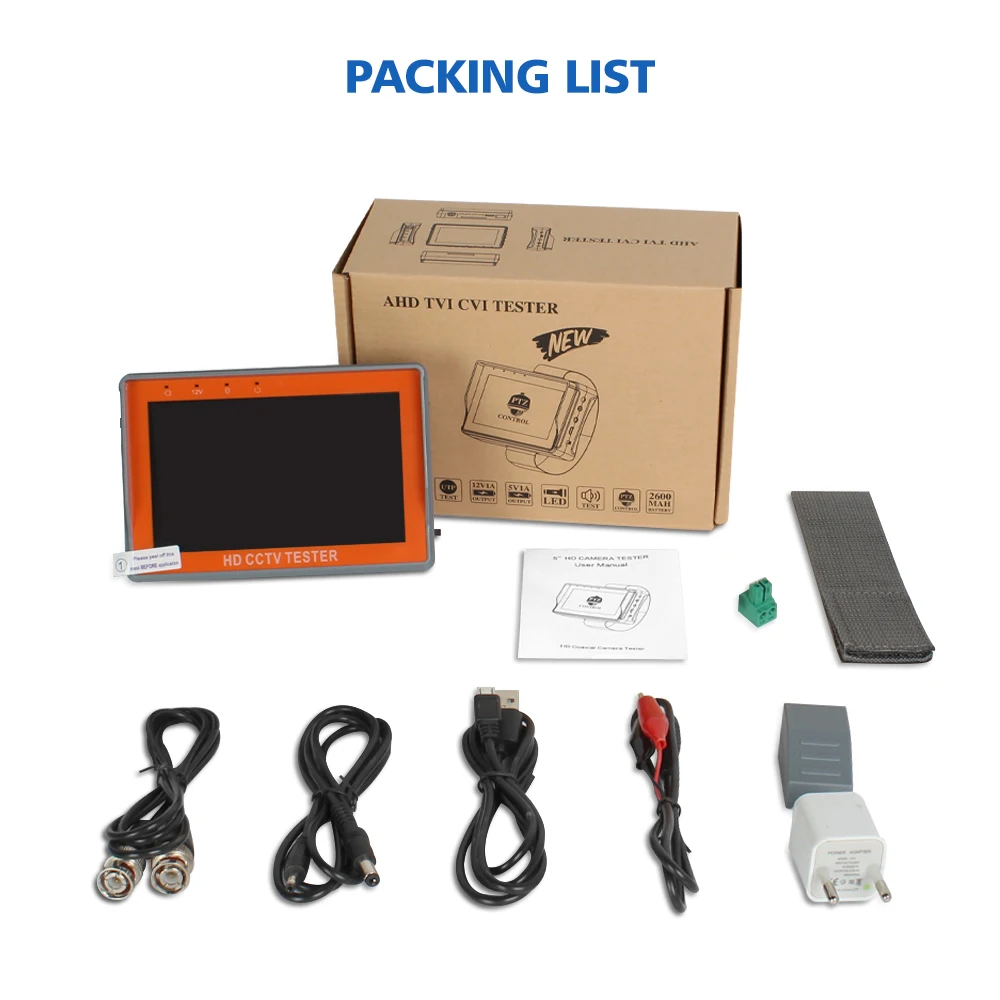

Packing list:

1* HD 8MP Coaxial CameraTester

1* Adapter DC5V 1.5A(with USB cable)

1* International Standard 18650 2600ma battery

1* BNC cable

1* RS485 connector

1* Power output conversion cable

1* Audio cable

1* Lanyard

1* Tool bag

1* Instruction Manual
